Devilwork cycles

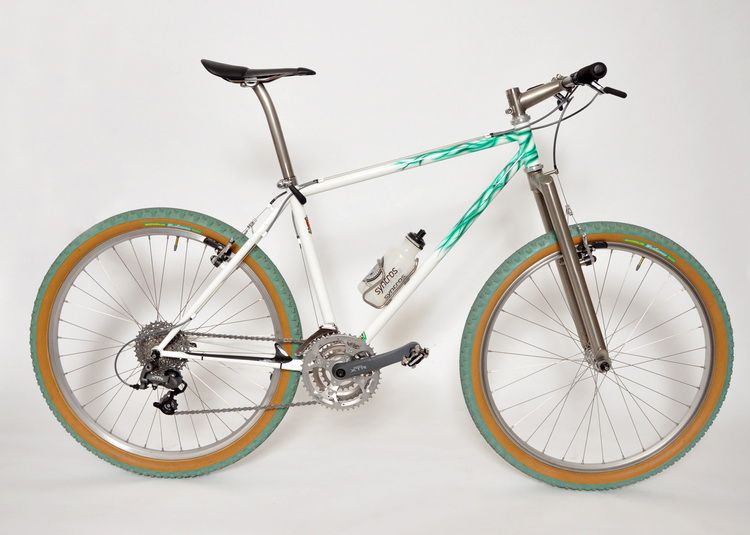

The aim of this project was to refresh the legendary glory of the Shimano XTR as a mountain bike with many vintage components. I built this bike for easy terrain and road riding...just for fun.
The frame is a stainless steel hardtail, welded from Reynolds 725/853 tubes. It`s a custom hand-made frame welded in Slovakia. Yes, Slovak's hands built this frame. I must thank DevilWork Cycles for its all-in-one service, including frame design and welding. The frame supports a traditional bridge-style cantilever-brake cable stop. Frame drop-outs have been machined by Paragon Machine Works. There is a classic non-disc-brake version.
The main colour is white. My friend airbrushed, of course, the custom graphic in Michelin`s WildGripper green. The overall design has been completed with a small custom badge hand-made by Jennifer. Thank you, Jennifer. My aim was to point out the national origin of the frame using the national emblem of Slovakia.
It took me a longer time than I expected, but finally, here it is. The fork is definitely rigid - a titanium piece of art by Italian Paduano Racing. With a custom geometry specification of the fork, the a-c length is 480mm, which corresponds to a standard 100mm full-suspension fork. The fork provides custom titanium front cantilever-brake cable-stop and cantilever (V-brake) brake bosses. There is no disc-brake option. It was kept unpainted in a "raw" finish and with no decals.
Let`s start with a headset. The old men could have mentioned that Chris King NoThreadset should have been the only acceptable option. They`re right, an excellent option with no excuse, but... not in this project. There`s still a good opportunity to buy a never-used nor mounted Shimano Deore XT HP-M741 headset. This is a thread-set version, I had to mill the threads off of the upper cup to allow mounting on a 1 1/8" ahead fork steerer. I used a titanium top cap and titanium headset bolt in addition.
I found two pieces of mountain bike history on the Internet - a titanium Titec Fat Head stem and a titanium Titec Pluto Ti 118 handlebar. The handlebar`s width (555mm) no more fits my personal needs, thus I requested a friend of mine to rough out a pair of handlebar extender plugs to extend the handlebar to 600mm. The new cockpit has been completed with a pair of Bike Ribbon Leggera Pro grips.

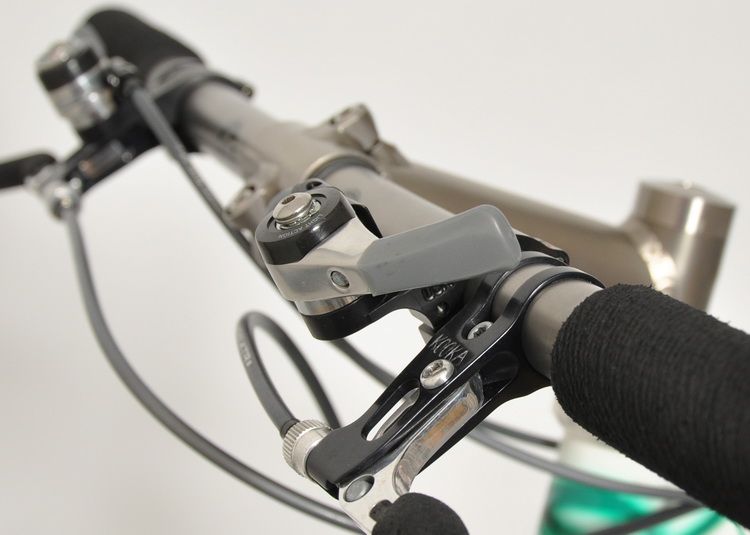

I developed a Titec titanium cockpit with a pair of Kooka Racha cantilever brake levers. They had been anodized in green before. Old anodization was removed and the lever bodies were re-anodized, but now in black. The lever arms had been kept without anodization. Small parts were kept unchanged, without re-anodization.
Let`s move on to the seat zone - seat post, seat post quick release, and saddle. The only acceptable option in this project was a titanium seat post. Due to bicycle fit optimization, I replaced the Syncros seat post with titanium Moots with a setback. Basic info: seat post diameter 27,2mm, length 340mm, and offset of 19mm.
Having a chance to ride a custom steel frame I thought of using an alternative to the classic seat post clamp - a quick release. I had one Shimano Deore XT SQ-M730 quick release that would fit my expectations.

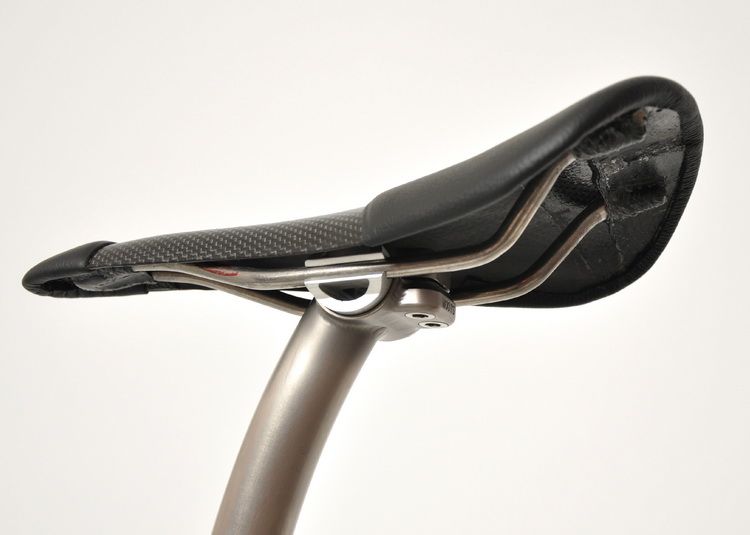

The Selle Italia SLR saddle used before on this bicycle has been taken away and changed for tune Speedneedle instead. But the issue was... saddle rails. Speedneedle`s oversized carbon rails do not fit the Moots standard seat post clamp. Well, I requested a saddle-maker, by chance, for a "custom" saddle with titanium rails and... it`s done! In the end, there`s one completely damaged Selle Italia SLR and one tune Speedneedle with titanium rails.
Shimano XTR M950/952 mountain bike group is a well-known legendary group. The best ever and the most beautiful group came from Shimano. I took the opportunity to re-use some used parts, but in very good condition, as well as some pretty new parts, never used nor installed.
First, in a queue, 4-arm mountain bike cranks FC-M952 Octalink V1 with original 24/34/46T chainrings and bolts. The cranks have been in perfect condition. The Shimano XTR BB-M952 bottom bracket is a must here. A place of 9-cog cassette took Shimano XTR CS-M953 12 - 34-tooth model traditionally. Chain, naturally, CN7701 DuraAce/XTR.
Front FD-M950 Differential Plate and rear RD-M952-GS Middcage derailleur play a good game together with road DuraAce SL-7700 bar-end shifters. The shifters have been mounted on Paul Components thumbs. An outer cage of the M952 rear derailleur has been taken off from the older XTR derailleur, while the inner one has been re-anodized to black. Simply, gear shift cables and housing - Shimano DuraAce/XTR - in DuraAce/XTR grey.

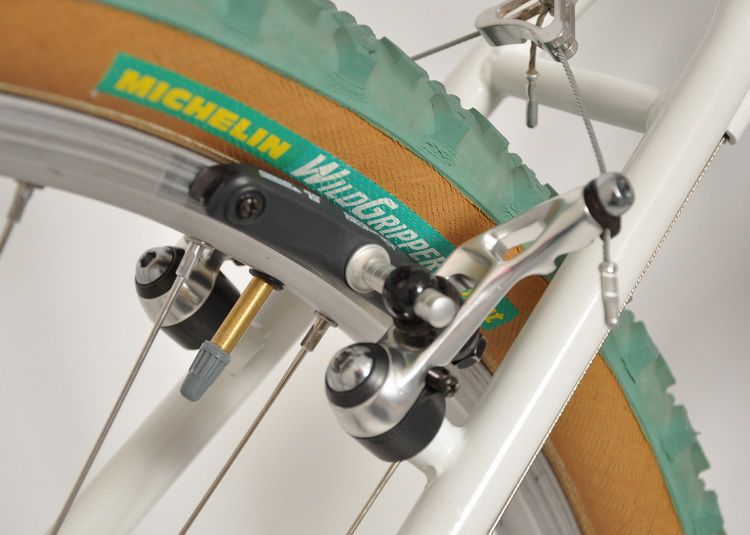

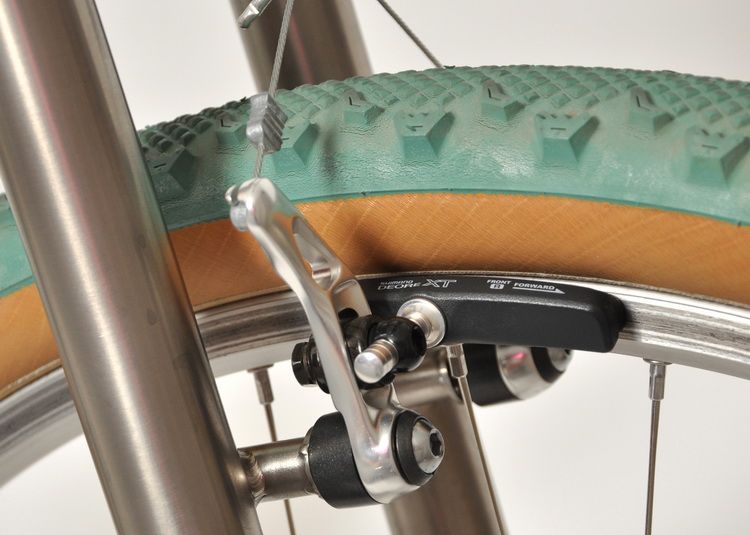

Components from Shimano Deore XT (1994 - 1997) mountain bike group persuaded me to significantly revise the brake and wheels philosophy. I mounted complete sets of Shimano Deore XT BR-M737 front and rear cantilever brakes with replaceable M-System cartridge brake pads. Together with the brakes, I bought a pair of brand new Avid Tri-Dangle cantilever brake cable hangers and new-old-stock Shimano XTR M910 cantilever brake cables and housing.

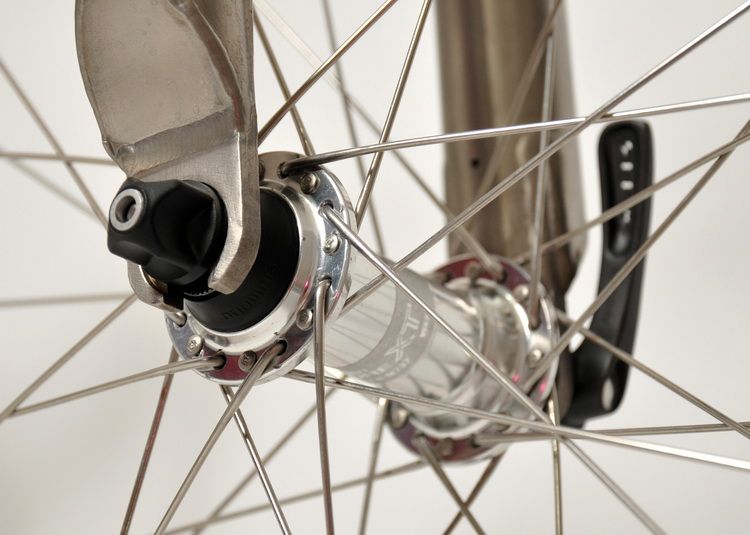

Cantilever brakes and headset were not the only ones of the Shimano Deore XT group used in this project. I built new wheels for that bike on Shimano Deore XT HB-M737 front and FH-M737 rear hubs. Hubs have been cleaned and successfully repaired. They got brand new front and rear cones and bearings. The rear hub has been completed in addition to a new free-wheel body taken from the newer Deore XT group. Missing original Deore XT quick releases have been replaced with a pair of Shimano XTR FH-M950 skewers.
The hubs have been laced to classic Mavic XC717 rims using DT Swiss Revolution spokes and SAPIM nipples. Over the top, I used Schwalbe rim strips.
In the case of tires, I was looking for several MTB options and I have finally chosen. My choice is a pair of Michelin WildGripper Lite S tires. The tires are new, never used before. The size of the tires is 26 x 2,1" (both front and rear) in the Kevlar version. Michelin WildGripper Lite S tires is a pure terrain solution. I use this bike more on the road, however.
The ROAD version should have tires with a low profile and very good grip on the road, but still reasonable in light terrain too. I met someone who sold me a brand new pair of Michelin WildGripper Sprint tires. These awesome Kevlar tires were never used or mounted. Both tire versions rely upon a classic system of Michelin Aircomp Latex inner tubes.

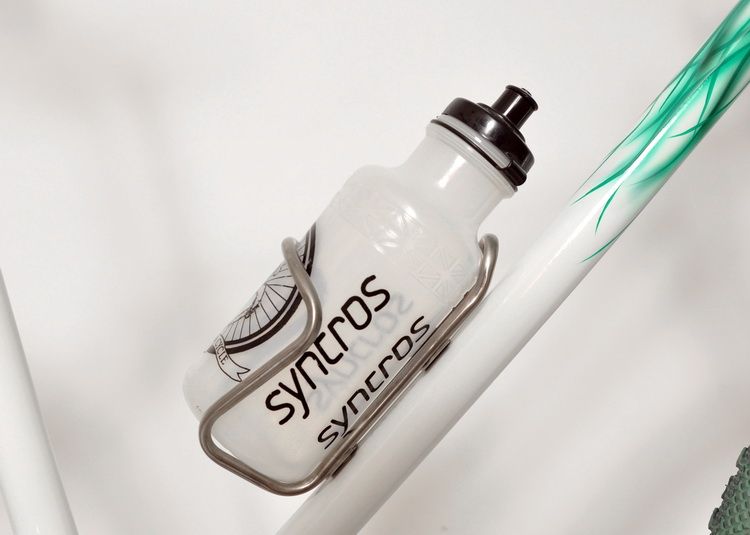

Another piece for my retro project is a titanium water bottle King Cage with titanium bolts. I found one appropriate bottle too. It`s a new, never used, and very rare transparent version of the Syncros 500ml water bottle. An indisputable requirement on how to secure the frame is to use a "chain deflector" – a Shimano Deore XT DF-M730 Shark Fin. The very last missing piece before completing my new retro bike was Shimano SPD-M520 clipless pedals.
Unlike in all my other projects I used here a minimum of my favourite titanium bolts. I understand that the project is conservative and retro, thus I left all necessary bolts unchanged. The only exception is a set of titanium bolts used for water bottle cage frame mounts and a titanium headset cap with a titanium bolt.
I felt very happy when building the bike and I appreciated every moment and every opportunity to buy or to tune the parts used for that project. Although the project finished after two years, I`m glad that I finished it successfully. I ride the bike almost every day and I enjoy every ride. It looks like it becomes my bike No.2.
Specification
frame | DevilWork Cycles Custom Steel /custom airbrush |
fork | Paduano Racing Custom Titanium |
shock | --- |
headset zone | |
headset | Shimano Deore XT HP-M741 |
top cap/bolt | titanium cap /titanium bolt |
headset spacer | titanium |
crankset | |
crankset | Shimano XTR FC-M952 |
chainrings | Shimano XTR |
bottom bracket | Shimano XTR BB-M952 |
shift zone | |
gear shifters | Shimano DuraAce SL-7700 /Paul Components thumbs |
cables/housing | Shimano DuraAce/XTR |
front derailleur | Shimano XTR FD-M950 Differential Plate |
rear derailleur | Shimano XTR RD-M952-GS |
cassette | Shimano XTR CS-M953 |
chain | Shimano CN-7701 DuraAce/XTR |
wheels | |
front hub | Shimano Deore XT HB-M737 |
rear hub | Shimano Deore XT FH-M737 |
quick releases | Shimano XTR FH-M950 |
rims | Mavic XC717 /Schwalbe rim strips |
spokes/nipples | DT Swiss Revolution 2,0/1,5/2,0 /SAPIM 14/2,0 nipples |
brakes | |
front brake | Shimano Deore XT M737 /Avid Tri-Dangle brake cable hanger |
rear brake | Shimano Deore XT M737 /Avid Tri-Dangle brake cable hanger |
brake levers | Kooka Racha Cantilever |
cables/housing | Shimano XTR M910 |
pedals | |
pedals | Shimano SPD-M520 |
control | |
handlebar | Titec Pluto Ti 25,4/600mm /extender plugs |
grips | Bike Ribbon Leggera Pro |
handlebar ends | --- |
stem | Titec Fat Head 120mm |
seat zone | |
seatpost | Moots Titanium Setback 27,2/340mm |
seatpost clamp | Shimano Deore XT SQ-M730 |
saddle | tune Speedneedle Custom /titanium rails |
tyres | |
front tyre | Michelin WildGripper Lite S Front 26x2.1" Kevlar |
rear tyre | Michelin WildGripper Lite S Rear 26x2.1" Kevlar |
tubes | Michelin Aircomp Latex |
front tyre | Michelin WildGripper Sprint 26x2.1" Kevlar |
rear tyre | Michelin WildGripper Sprint 26x2.1" Kevlar |
tubes | Michelin Aircomp Latex |
others | |
King Cage titanium water bottle cage /titanium bolts | |
Syncros water bottle 500ml | |
Shimano Deore XT DF-M730 Shark Fin | |
custom 3D badge |
